What Is Dielectric Strength?
Dielectric strength is a basic electrical property that describes how much voltage an insulating material can withstand before it breaks down and allows current to pass through.
In simple terms, it shows how well an insulating material can "block" electricity under high voltage conditions. It is an important parameter for electrical components such as push button switches, connectors, and insulation materials.
What Does It Mean?
In electrical equipment, insulating parts are used to separate conductive components and prevent short circuits.
When voltage increases too much, the insulation may fail. The point at which this happens is related to the dielectric strength of the material.
It is usually expressed in:
V/mm (volts per millimeter)
kV/mm (kilovolts per millimeter)
Higher values mean stronger insulation ability.
Why Is It Important?
Dielectric strength directly affects the safety and reliability of electrical products.
It helps:
Prevent electrical breakdown
Avoid short circuits
Reduce leakage risks
Protect internal circuits
Improve long-term stability
For industrial control products like push button switches, this is especially important in high-voltage or harsh environments.
How It Is Tested
Dielectric strength is usually verified through a withstand voltage test.
During the test:
High voltage is applied between insulated parts
The insulation must not break down
No arc or flashover should occur
Leakage current must remain within limits
If the product passes, it means the insulation system is safe under the specified voltage conditions.
In Push Button Switches
For push button switches, dielectric strength is tested between key internal parts such as:
Contacts and housing
Different contact circuits
LED module and contact system
Common test voltages may include 500V, 1000V, 1500V, or higher depending on product design and application.
What Affects Dielectric Strength?
Several factors can influence insulation performance:
Material quality – better insulating materials provide higher strength
Temperature – high temperature can reduce insulation performance
Humidity – moisture lowers insulation resistance
Contamination – dust or oil can affect insulation stability
Why It Matters When Choosing a Switch
When selecting a push button switch, dielectric strength should be considered together with:
Rated voltage and current
Insulation resistance
Protection level (IP rating)
Working environment
In industrial automation, EV charging, medical equipment, and power systems, insulation performance plays a key role in safe operation.

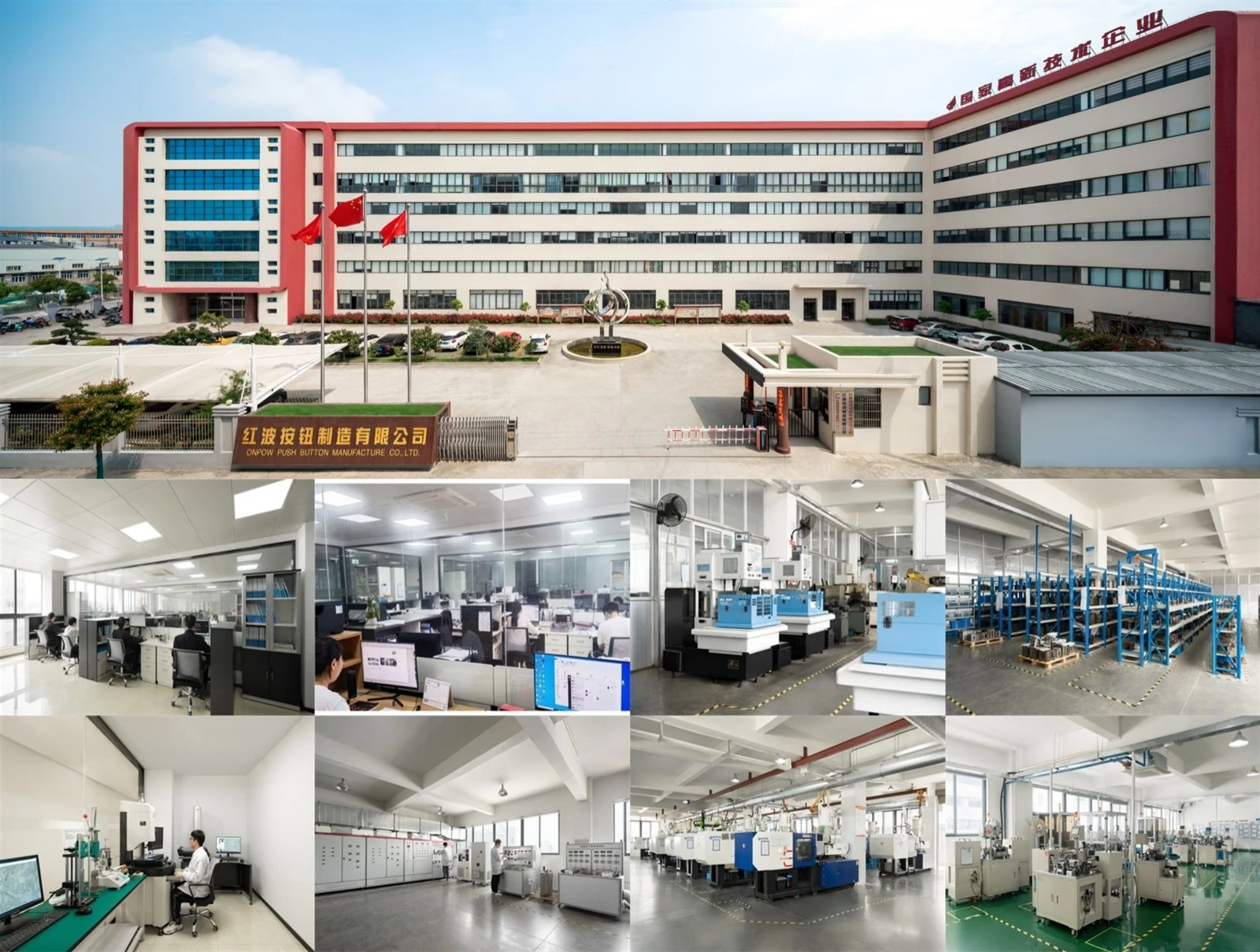

ONPOW Quality Control
ONPOW push button switches are designed with electrical safety in mind. Each product undergoes insulation and withstand voltage testing to ensure stable performance in practical applications.
Conclusion
Dielectric strength refers to the ability of an insulating material to withstand high voltage without failure. It is a key indicator of electrical safety and product reliability.
For push button switches, good dielectric strength means safer operation, better durability, and more stable performance in real-world use.
ONPOW provides reliable push button switch solutions for industrial control, automation systems, and electrical equipment applications worldwide.
