LAS1-AGQ-11TS
19mm Emergency Stop Switch
1.19mm Emergency stop switch of LAS1-AGQ-11TS:
With mushroom shape actuator which is easier for user to push it.
2.Specifications:
Mounting hole: 19mm diameter
Function: push lock, turn reset.
Crust material: Aluminium Alloy
Terminal: Pin terminals
Rating: 5A/250VAC
Approval: UL,CE and ROHS.

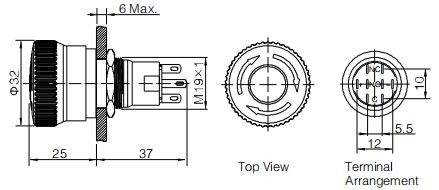

3.Drawing:
Two sets of terminals,C1NO1NC1 and C2NO2NC2 are one set respectively. C is common pin, NO is normally open, NC is normally closed;+- are lamp terminals, the standard LED have no difference of anode and cathode;
Lamp and switch are relatively independent and can use switch or peripheral circuit to control the lamp state.
4.Warranty:
1 year
5.Price and shipping information:
Qty＜100pcs : Price is around USD7.13
Qty ≥1000pcs: 5% discount
Trade Term: FOB shanghai
Lead time: 1000pcs/7workdays
Payment: T.T before shipment.
Transport mode: DHL,UPS,EMS,TNT,Fedex, by sea and so on.
6.About ONPOW:
ONPOW has 30 years experience in the field of producing push button switch and LED indicators. We supply all products with factory price. Our products are exported to Europe, the USA, the Middle East, Asia, etc.
7.ONPOW's Factory:
Hot Tags: 19mm metal emergency stop switch, China, manufacturers, wholesale, customized, quotation
