Plastic Selector Switch

Your Professional Plastic Selector Switch Supplier

We are a manufacturer of all kinds of pushbutton switches. From the factory - direct to the hands of consumers, here we save (total distribution-wholesalers-stores) and other channels, for you to provide a simple direct and effective supply! Besides our existing molded products, YongYuan also can production of products according to the drawings or samples from our customers.

First 12 3 Last 1/3

Why Choose Us

24-Hour Service

Our dedicated 24-hour online support ensures prompt responses, providing you with an excellent shopping experience. Feel free to reach out with any questions at any time.

Professional technical support

We have an experienced technical team that can provide comprehensive technical support from product design and process optimization to maintenance.

Our Certificate

Under the strict management of ISO9001 quality system, environmental system ISO14001, the company's products have passed a series of international standard certificates such as UL, VDE, CCC, CE (LVD), CE (EMC).

Customized solutions

Every customer is unique, which is why we offer tailored solutions to meet your specific requirements. We offer technical support that is second to none.We take pride in our rapid response and flexibility to ensure your needs are met.

Product Description

Items	Standard
Rated voltage & Rated Current	3A//250V
Contact Resistance	30mΩ maximum
Insulation Resistance	500VDC, 50mΩ
Compression Resistances	1500VAC/3000Vac, 1Min
Operating Temperature	T125°C
Electrical Life	10000 Cycles
Certificate	CB, CQC, TUV
Color	Black or as customer's request
Installation Type	Screw Fixing
Material	Plastic+Copper+Steel
Warranty	3 Years

Advantages of Plastic Selector Switch

Electrical Insulation

Plastic is a poor conductor of electricity, which is crucial for switches to protect users from electrical shock.

Corrosion Resistance

Unlike metal, plastic does not rust or corrode, making these switches reliable in environments with moisture or chemical exposure.

Lightweight Design

Plastic is much lighter than metal, contributing to easier handling and installation, especially in consumer electronics and smart home applications.

Design Versatility

Plastic can be molded into a wide variety of shapes and sizes, offering greater flexibility in product design and aesthetics for various applications.

Cost-Effectiveness

While metal switches might offer superior long-term durability, plastic switches often have a lower initial purchase price, and their resistance to corrosion can reduce maintenance costs.

Impact and Vibration Resistance

Modern plastic selector switches can be engineered to be impact, dust, water, and vibration resistant, suitable for demanding industrial and harsh environments.

Main technical parameter

Mounting Hole Size	Φ22mm
Switch Rating	5A/250VAC
Contact Configuration	1NO1NC
Operation Type	Momentary, Latching
The Crust Material	Stainless Steel
Protection Degree	IP40, (IP65 Can be made to order)

Working temperature	(-25°C ~ +55°C) No frozen The around of light switch body must be airiness
Work environment humidity	45-85%RH Non condening
Contact material	Silver cadmium oxideS ilver plated gold plating thickness
Contact resistance	≤50mΩ
Insulation resistance	≥100mΩ
Contact between lamp bead pin	2000V,AC50Hz,1min
Between same class terminal	1000V,AC50Hz,1min
Between different electrode terminal	2000V,AC50Hz,1min
Vibration proof	50HZ,Amplitude about 1.2mm
Impact resistance	Greater than 10g
Mechanical Life	1,000,000 times
Electric Life	Above 30,000 times
Dia of welding	Dia of welding line 2×0.85
Max copper wire area	Max copper wire area 0.75mm2
Wiring insert:	Wiring insert:2.8 0.5mm
Operating distance	Button about 3mm

Types of Plastic Selector Switch

Short Handle
This type has a compact handle, making it slightly harder to operate. However, it is cost-effective and widely available.

Long Handle
Featuring an extended handle, this switch is easier to use but comes at a higher price compared to the short-handle version.

Key Operated
Designed for security purposes, this switch includes a removable knob that prevents operation when detached. It features a built-in lock, ensuring only individuals with the corresponding key can activate it, enhancing safety in sensitive applications.

Illuminated
These switches include a built-in lamp for visibility and combine two functions into one operator, saving space. They are affordable and ideal for low-light environments where they help workers identify equipment status (on/off).

Non-Illuminated
Unlike illuminated switches, these lack a lighting element but offer stronger operators. They are often used for controlling machinery across multiple settings and come equipped with contact blocks for easy installation.

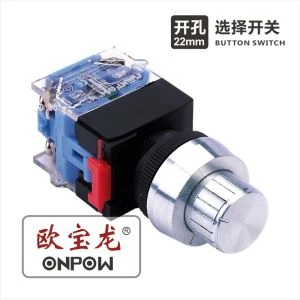

2-Position Selector Switch
This type toggles between two electrical circuits and can operate in either a momentary or maintained mode.

3-Position Selector Switch
This switch allows selection between three circuits and is commonly used to activate one of two contact sets or isolate both. It can also operate in momentary or maintained modes.

Application of Plastic Selector Switch

Automotive: Employed in commercial goods vehicles to manage multiple functions.

Building and Public Works: Used for interior control systems, such as lighting or HVAC.

Industrial Controls: Integral to industrial automation and control systems for selecting modes or functions.

Control System Panel Builders

Incorporated into custom control panels for machinery and equipment.

Public Spaces

Utilized for managing lighting systems in areas like parks or public buildings.

Medical Equipment

Applied in medical devices to control specific operational settings.

Home Automation

Found in smart home devices to switch between various modes or settings.

Shipping

productcate-779-532

FAQ

Q: What are the applications of selector switch?

A: A selector switch is used to select between multiple circuits, modes of operation, or functions in a variety of applications, including industrial control systems, automation, audio equipment, instruments, test equipment, security systems, and electrical equipment.

Q: What are the advantages of using selector switches?

A: As selector switches allow you to switch between multiple positions and modes, this makes them ideal for applications with limited space for buttons or controls. They also have the benefit of offering clear visual feedback to simplify the user experience.

Q: What is the difference between a rotary switch and a selector switch?

A: Rotary switches offer multiple positions, which is ideal for controlling various circuits or settings. Selector switches are designed to select one specific mode or function from a limited set.

Q: Why use a selector switch?

A: The function of a selector switch is to control devices as well as switch between a minimum of two or more circuits. The perfect use for a selector switch is when used for controlling an output of a device.

Q: Is a selector switch manually operated?

A: Yes, a selector switch is a manually operated device that allows an operator to select between different electrical circuits or conditions by rotating a knob or handle. While it might control modes like Manual, Automatic, or Off, the switch itself is activated by a human operator to change the circuit's state, not by an automatic process.

We're professional plastic selector switch manufacturers in China, providing customized plastic selector switch for sale. Feel free to wholesale plastic selector switch and get quotation from our factory.
