Relay Socket
Your Professional Relay Socket Supplier
We are a manufacturer of all kinds of pushbutton switches. From the factory - direct to the hands of consumers, here we save (total distribution-wholesalers-stores) and other channels, for you to provide a simple direct and effective supply! Besides our existing molded products, YongYuan also can production of products according to the drawings or samples from our customers.

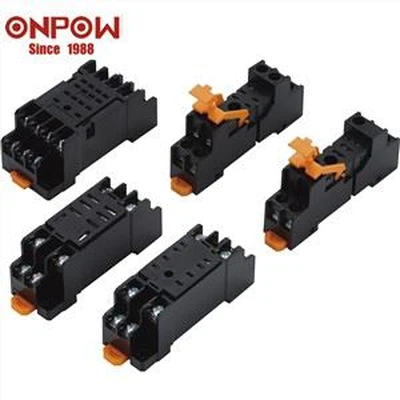

Relay Socket
Why Choose Us
24-Hour Service
Our dedicated 24-hour online support ensures prompt responses, providing you with an excellent shopping experience. Feel free to reach out with any questions at any time.
Professional technical support
We have an experienced technical team that can provide comprehensive technical support from product design and process optimization to maintenance.
Our Certificate
Under the strict management of ISO9001 quality system, environmental system ISO14001, the company's products have passed a series of international standard certificates such as UL, VDE, CCC, CE (LVD), CE (EMC).
Customized solutions
Every customer is unique, which is why we offer tailored solutions to meet your specific requirements. We offer technical support that is second to none.We take pride in our rapid response and flexibility to ensure your needs are met.
A relay socket is an electrical switch that allows you to control a circuit using a low voltage signal. They are often used in applications that require remote control of equipment or warning of potentially dangerous situations.
Relay sockets have many advantages over other types of switches. They are stronger and can withstand more wear and tear. They are also less likely to be affected by electrical interference. And because they use low-voltage signals to control circuits, they're much safer to use than other types of switches.
Specification
|
Product Name |
Automatic Voltage Regulator |
|
Material |
Flame Retardant ABS |
|
Voltage Range |
220V±10% |
|
Frequency |
50/60Hz |
|
Over Voltage Protection |
Yes |
|
Surge Protection |
Yes |
|
Delay Time |
10S/30S/3 Min |
The Different Types of Relay Socket
PCB Mount Relay Sockets
PCB mount relay sockets fit directly onto printed circuit boards (PCBs). They are small and help connect relays to circuits. These sockets are used in devices like electronics, medical tools, and small systems.
Panel Mount Relay Sockets
Panel mount relay sockets attach relays to panels or enclosures. They are used in control panels, cars, and HVAC systems. These sockets stay strong even with vibrations or movement.
DIN Rail Mount Relay Sockets
DIN rail mount relay sockets are made for factories and businesses. They attach to DIN rails, which are metal strips for organizing electrical parts. These sockets are common in factories, power systems, and automation setups.
Plug-In Relay Sockets
Plug-in relay sockets make adding or replacing relays much easier. You don't need to solder or deal with tricky wiring. These sockets are common in cars, machines, and home gadgets where quick relay swaps are needed.
Surface Mount Relay Sockets
Surface mount relay sockets are made for small and lightweight devices. You can attach them to flat surfaces, making them perfect for tight spaces. They are often used in electronics, medical tools, and communication devices.
The most basic function of a relay socket is to provide a safe, isolated disconnect point for voltage-controlled equipment such as contactors, overload relays, and indicator lights. This protects controlled voltage devices (CVD) and control circuits from voltage and current surges. In the event of a surge, the CVD can be quickly disconnected from the circuit, preventing damage to the CVD and control circuitry.
Structure of Relay Sockets
Relay sockets typically consist of several key components. These include:
Base
The base is the part of the relay socket that directly interfaces with the circuit board or wiring panel. It often features screw or spring terminals for secure electrical connections.
Contacts
Contacts are the conductive parts that create a connection between the relay and the socket. They ensure proper current flow from the socket to the relay when activated.
Clips or Retainers
These elements are used to hold the relay securely in the socket. They prevent the relay from falling out or moving around during operation
Inspection And Maintenance Guidelines
Checking and cleaning your relay socket regularly keeps it working well. Look for signs of wear like cracks, discoloration, or loose parts. These problems can cause your system to fail.
Clean the socket to remove dust and dirt. Use a soft brush or compressed air to clean without harming the contacts. In tough environments, use covers to protect the socket from water and dirt.
Test the socket and relay during maintenance. Use a multimeter to check if power flows correctly. Replace any broken or worn parts right away to keep your system running smoothly.
Applications of Relay Socket
Industrial control systems: Relay sockets are widely used in industrial control systems, where they are used to control the operation of motors, pumps, heaters, and other electrical equipment. They are essential for ensuring that the equipment operates reliably and safely, and they are often used in control cabinets and enclosures.
Automation systems: Relay sockets are also used in automation systems, where they are used to control the operation of various processes and equipment. They are often used in conjunction with programmable logic controllers (PLCs) and other automation devices to control the operation of machinery and equipment.
HVAC systems: Relay sockets are used in heating, ventilation, and air conditioning (HVAC) systems, where they are used to control the operation of fans, compressors, and other HVAC equipment. They are essential for ensuring that the HVAC system operates reliably and efficiently, and they are often used in control panels and units.
Automotive systems: Relay sockets are also used in automotive systems, where they are used to control the operation of various electrical components, such as lights, wipers, and cooling fans. They are essential for ensuring that the electrical system of the vehicle operates reliably and safely, and they are often used in the vehicle's electrical panels.
FAQ
We're professional relay socket manufacturers in China, providing customized relay socket for sale. Feel free to wholesale relay socket and get quotation from our factory.
