1. Product description
Mounting hole: 30mm diameter
Operation position:Two Position(2)/Three Position(3)
Operation Type: Remain(1)/Half return(2)/Return(3)
Housing material: Stainless steel
Terminal:Pin terminal
Switching Rating: Ith:5A, Ui:250V
Approval: CE and ROHS.
IP Rating: IP40
Mechanical life: 500,000
Electrical life: 50,000
Operation temperature: -25 -- 55 degree.
Contact resistance: Under 50mΩ

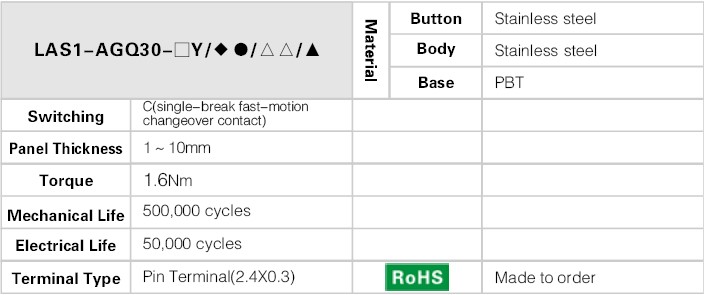

2. Drawing :
3. Quality warranty: 1 year
Lead time: 2000pcs/15workdays
Payment: Paypal or T.T before shipment.
Shipping way: Discuss by email.
4.About ONPOW:
30 years history major in push button switch and led indicator, the switch have CE,VDE,UL,CCC,ROHS,Reach approval
5.Picture about factory:
FAQ
Q1: What quality for your products?
A1: We provide you with original and high copy items for your choice.
Q2: How do you control quality?
A2: We test them one by one, our professional QC make sure each item the top quality.
Q3: Who will pay for the tax fee?
A3: Customers need to pay for fee and customs tax, and extra fees if you are in remote areas. We can declare your goods at low value to help you avoid high taxes.
Q4: How to apply refund?
A4: Once the PI is confirmed and your ordered goods are ready, a refund will not be available if you want to fully or partially cancel the order. However, we will refund you in time in case we could not offer the products required, due to the shortage or unavailability.
Q5: When can you sent out the goods?
A5: We will ship the goods within 1-3 days after your payment is confirmed. And we will send you the tracking number the next day after the goods are collected by shipping agent.
Hot Tags: 3 positions key switch, China, manufacturers, wholesale, customized, quotation
