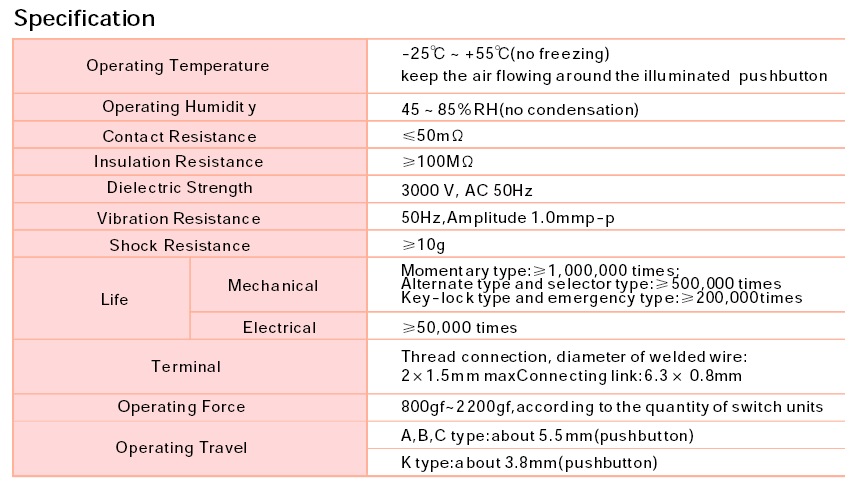

1. Product description
Part number:LAS0-K-□YTS
Mounting hole: 22mm diameter
Contact Configuration: 1NO1NC/2NO2NC/3NO3NC
Terminal Type: screw terminal

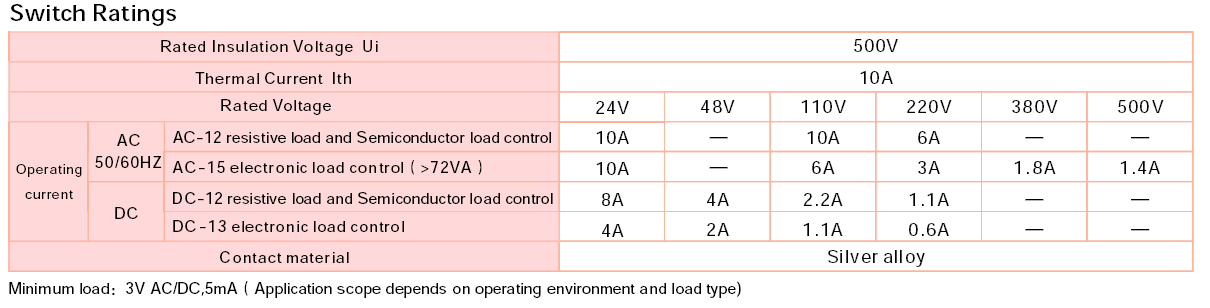

Switching Rating: Ith:10A, Ui:500V
Approval: VDE and ROHS.
IP Rating: IP40
Mechanical life: 200,000
Electrical life: 50,000
Operation temperature: -25 -- 55 degree.

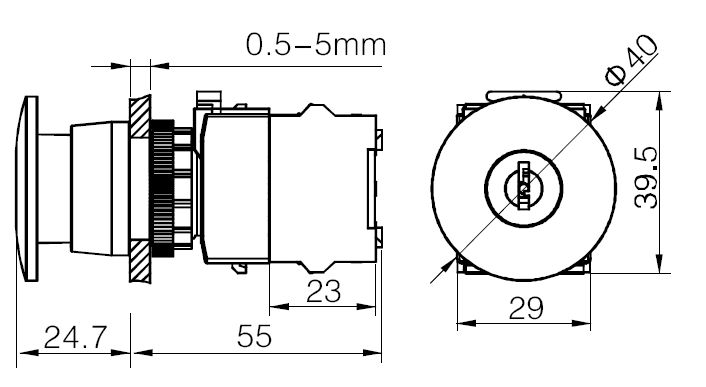

2. Drawing :
3. Quality warranty: 1 year
Lead time: 2000pcs/15workdays
Payment: Paypal or T.T before shipment.
Shipping way: Discuss by email.
4.About ONPOW:
30 years history major in push button switch and led indicator, the switch have CE,VDE,UL,CCC,ROHS,Reach approval
5.Picture about factory:
FAQ
Q:Are you a factory or trading company?
A:We are the Direct Manufacture Factory.
Q:What is the MOQ for this items?
A:The order's MQO is 50PCS for each item. However,it is flexible as your requirements.
Q:How Can I get some samples?
A:Please email us, and we are honored to offer you samples. The sample is free, but need to charge
Q:Can I visit your factory?
A:Yes, of course you are warmly welcomed to visit our factory. Please inform us in advance.
Q:Which payments are acceptable?
A:We accept T/T,Paypal,Western Union.
