1. Product description
Part Number: GQ19G-D/A-J
Mounting hole: 19mm diameter
Panel Thickness: 1～10mm
LED color; Red, Yellow, Green, Orange,Blue and White
Head shape: round head
Housing material: black aluminum
Water proof level: IP67, IK10
Terminal: pin terminal(2.8*0.5mm)
Switching Rating: Ith:5A, Ui:250V
Approval: CE and ROHS.
Operation temperature: -25 -- 55 degree.

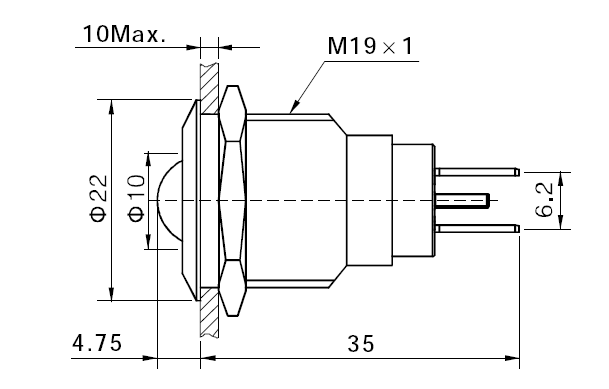

2. Drawing :
3.Picture about factory:
Why choose us:
1.We are manufacturer specialized in push button switches for over 30 years.
Our goods are sold very well in America and Europe Market.
2. more than 50 series and hundreds of different types of switches are molded and manufacture by ourselves even the spare parts to meet demands from various fields.
3.Strict Quality Control
Quality control before delivery, and the warranty of machine is 1.5 year.
4. Excellent After-sales Service
There are after-sales service team and professional engineer to help you.
Hot Tags: panel indicator, China, manufacturers, wholesale, customized, quotation
