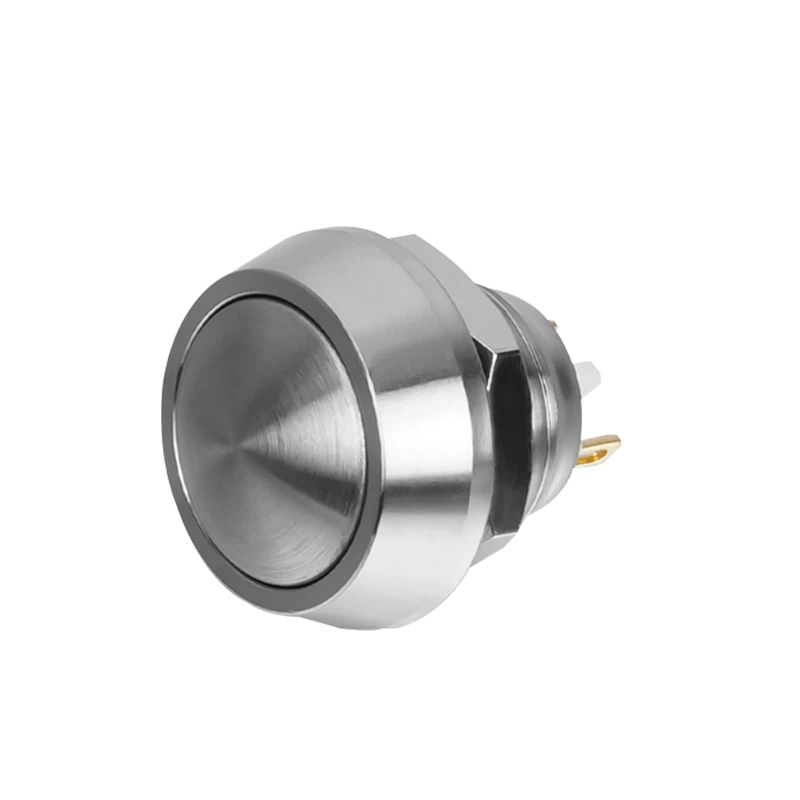

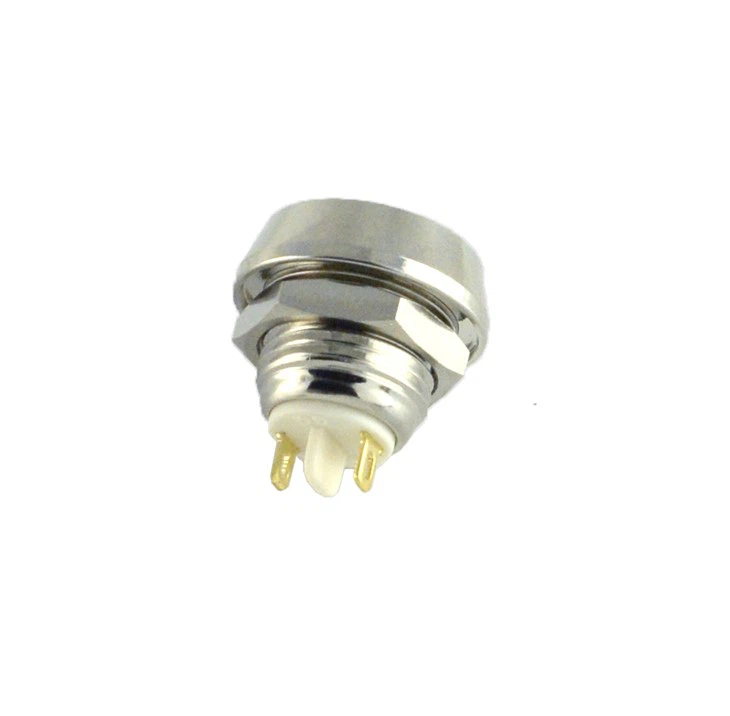

1.product Parameter (specification)
Switch rating: Ui:125V,Ith:3A
Mechanical life: ≥1,000,000 cycles
Electrical life: ≥200,000 cycles(36V/2A)
Contact resistance: ≤50mΩ
Insulation resistance: ≥100MΩ(500VDC)
Dielectric strength: 1,500V,RMS 50Hz,1min
Operation temperature: -25 ℃~55℃ (+no freezing)
Operation pressure: About 3.5N
Operation travel: About 2mm
Torque: About 0.3Nm Max.applied to nut
Front panel protection degree: IP65(IP67 made to order ),IK08
Terminal type: Pin terminal (2x0.5mm)
|
Operating Temperature
|
-25℃~+55℃(no freezing) keep the air flowing around illuminated pushbutton 45~85％RH(no condensation) ≤50mΩ ≥1000MΩ 1500V,A C50Hz,5 seconds ＞10g 50Hz,Amplitude 1.2mm 320℃(or 30W soldering iron) no more than 2 seconds) |
Standard and Certification
|
Standard
EN61058-1:2002+A2:2008 EN60947-1:2004 |
Certification Mark
|
Certificate Authority /Certification Number VOV/VT11018807 CTS/CTS070706-01006-E |
2.Product feature and application
The product is compact in size and can be applied to special vehicles.
3.Drawing:
4.Switching Operation
|
Type
Diagram
Sign |
|
5.FAQ:
Q:Can you provide samples?
A:If you would like free samples, we first need to know your annual purchase volume, and we will determine whether we can provide free samples after evaluation.
6.Latest news
Conference of the Company's League Branch and the First Congress of League Members Successfully Held.
Lead time: 500pcs/5workdays
Payment: T.T before shipment.
