1.product Parameter (specification)
Switch rating: Ui:125V,Ith:3A
Mechanical life: ≥1,000,000 cycles
Electrical life: ≥200,000 cycles(36V/2A)
Contact resistance: ≤50mΩ
Insulation resistance: ≥100MΩ(500VDC)
Dielectric strength: 1,500V,RMS 50Hz,1min
Operation temperature: -25 ℃~55℃ (+no freezing)
Operation pressure: About 3.5N
Operation travel: About 2mm
Torque: About 0.3Nm Max.applied to nut
Front panel protection degree: IP65(IP67 made to order ),IK08
Terminal type: Screw terminal
MATERIAL:
1.Contact: Silver alloy
2.Button: PBT
3.Body: Zinc-aluminium alloy(Black)
4.Base: PBT
|
Operating Temperature
|
25℃~+55℃(no freezing) keep the air flowing around illuminated pushbutton 45~85%RH(no condensation) ≤50mΩ ≥1000MΩ 1500V,A C50Hz,5 seconds >10g 50Hz,Amplitude 1.2mm 320℃(or 30W soldering iron) no more than 2 seconds) |
Standard and Certification
|
Standard
EN61058-1:2002+A2:2008 EN60947-1:2004 |
Certification Mark
|
Certificate Authority /Certification Number VOV/VT11018807 CTS/CTS070706-01006-E |
Lamp Ratings
|
Lamp Type Led Color Life Rated Voltage Rated Current DroppingWay Lamp Circuit Diagram
|
LED lamp(AC/DC)
40000 hours(Reference) AC/DC6V,AC/DC12V,AC/DC24V,AC/DC36V About 15mA Inner resistance (except for some products) Using AC/DCLED lamp, the terminals have no difference of anode and cathode: Using inner resistance, do not need connect outer resistance GQ12 and GQ16 have no inner resistance, need connect outer resistance.
|
| Note: DCLED and other voltage can be made to order. | |
2.Drawing:

3.Switching Operation
|
Type
Diagram
Sign |
![]() |

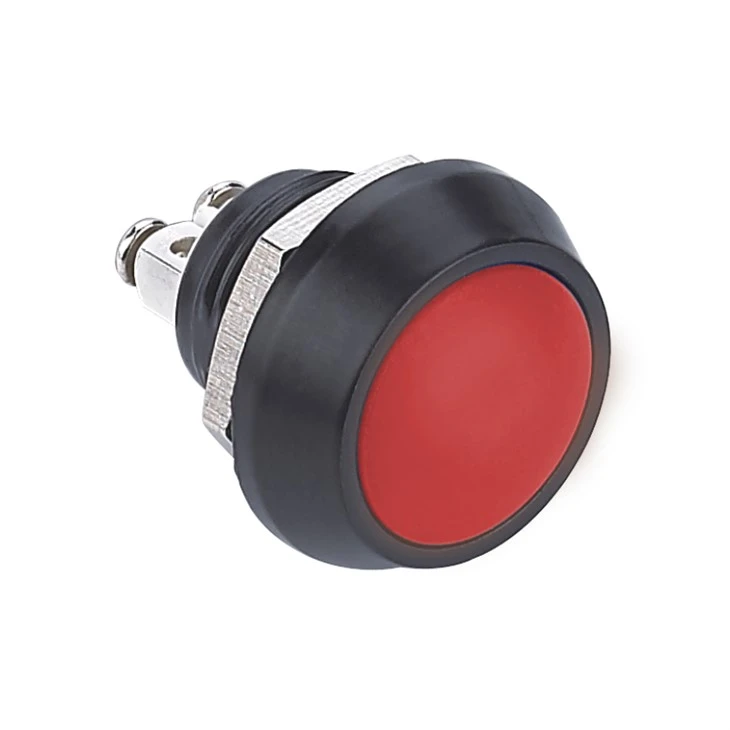

Hot Tags: 12mm push button with red body, China, manufacturers, wholesale, customized, quotation
