1.Product Specifications
Cut-out:12mm
Function:Momentary
Ring-illuminum：Red/green/yellow/white/blue
Contact Configuration:1NO
Head shape: High flat head
Terminal type: Pin terminal
Protection Class:IP65/FP:IP67
Crust material:Stainless steel
2.Drawing
3.Performance Characteristic
| Operating temperature | -25℃~+55℃(No freezing), keep the air flowing around | Operating humidity | 45 - 85% RH (Non condensing) |
| Initial contact resistance | ≤50mΩ | Insulation resistance | ≥1000MΩ(500VDC) |
| Power frequency witnstand voltage | 1000V (AC 50Hz), 1min | Vibration resistance | 5 - 50Hz, Amplitude 1.2mm |
| Resistant to soldering heat | 320℃, 3s | Switch rating | 1A/36VDC |
| Mechanical life |
Momentary≥1,000,000 cycles, Latching≥500,000 cycles, Emergency stop button≥200,000 cycles |
Electrical life | >50000 cycles |
| Base material | PA | Terminal type | Wiring patch(2×0.5mm /2.8×0.5mm)Quick connect socket |
| Torque | 0.3~1N・m | Operating force | About 2.5 - 4N |
| Operating travel | About 2.4mm | Front panel protection degree | IP65 (IP67 customizable), IK07 |
Switch structure
| Type | Schematic diagram | Symbol |
| X |
|
|
Switch pin description
| Button switch legend | Quick plug button switch legend | Emergency stop switch legend |
|
|
|
|
Lamp specifications
| LED life | Current | Voltage fluctuation range | Circuit diagram |
| ≥40000h | <20mA |
|
|
4.Product feature
Innovative research and development of the "short body self-locking" button structure
vandal waterproof push button switch
Quick connect tail, making wiring efficient and convenient
The product is suitable for users with insufficient rear space
Lead time: 500pcs/5workdays
Payment: T.T before shipment.
About ONPOW:
All the parts of product is made by ourselves, we have many large facilities. So we can control the quality better

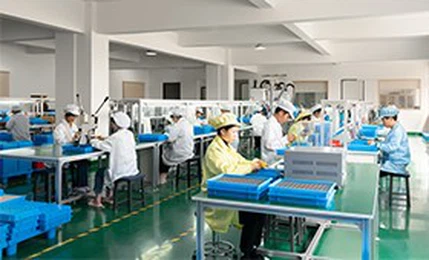

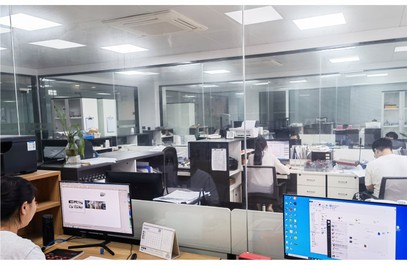

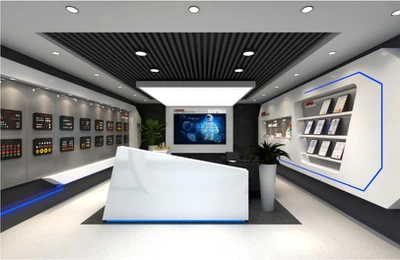

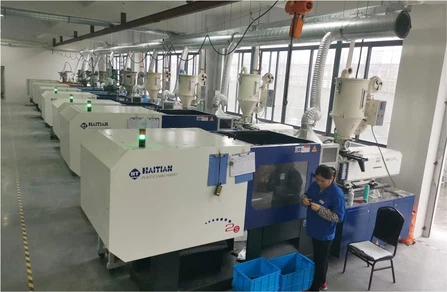

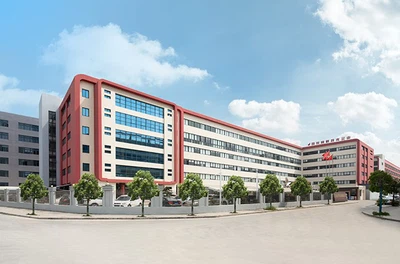

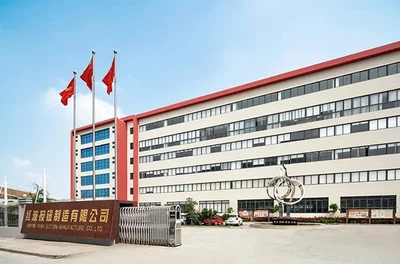

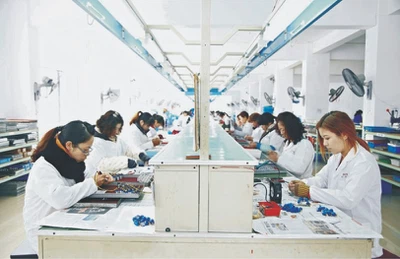

Picture about factory
Below is our certificate:
Quality commitment:
The time of warranty : 1 year
(we accept replace the switch if you have any problem during this period)
Comprehensive Product Portfolio: Covers a wide range of product categories and complete specifications, meeting multi-scenario and diversified procurement needs in one stop.
Prominent Customization Capabilities: Precisely adapts to clients' personalized needs, with efficient response throughout the entire process from solution design to delivery.
Complete Qualifications and Certifications: Equipped with all authoritative industry certifications, featuring strong compliance. Quality and safety are more trustworthy.
