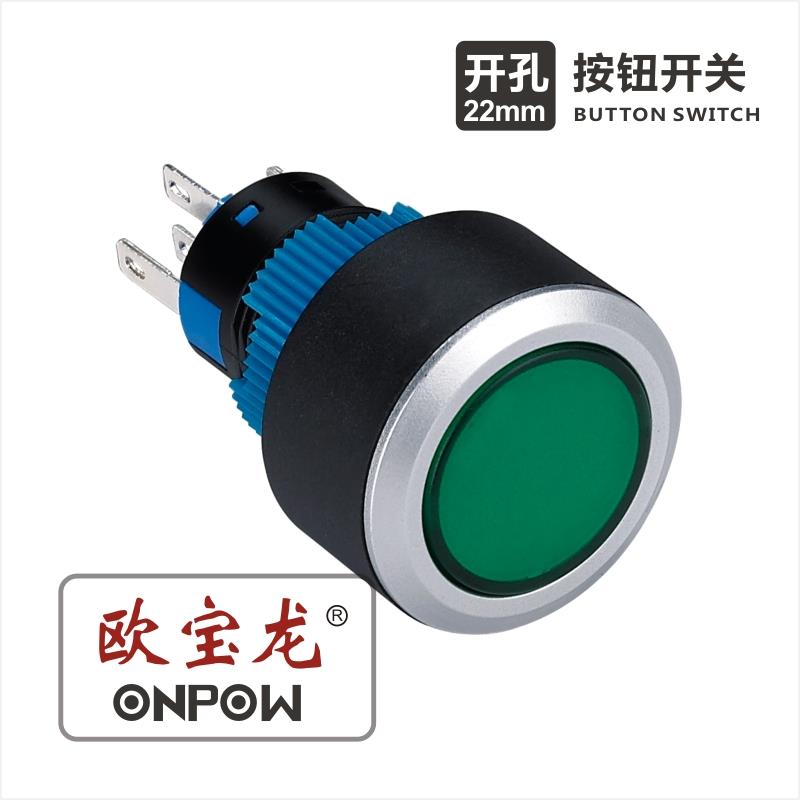

1. Product description
Model Number: LAS1-AWY-□/△/▲/◎
Panel cutout dimension: Φ 22 mm
Round head (silver colored frame)
Height above panel is just 2 mm
Switch Rating: AC220V/0.5A, DC110V/0.1A
Contact structure: 1NO1NC / 2NO2NC
Momentary
IP40 / IP65
Mechanical life: 1,000,000 cycles
Electrical life: 50,000 cycles
Contact resistance: ≤ 50mΩ
2. Drawing :
3. Lead time: 500pcs/7workdays
Payment: T/T before shipment.
Shipping method: forwarder, EXPRESS
4.About ONPOW:
We have a strong team over 10 person major in develop new series every year, we have more than 100 patent for push button switch and other switch, we provide special service of different requirement by customer, like special laser engraving symbol, special design, special wiring with connector, special structure for different area application.
5.Picture about factory:
Our Service&Promise
Q: Do you have a guarantee of your product quality?
A: We have a guarantee of one year. If you use the switch properly but it goes wrong, we will analyze and replace for it
Any requirements or question,welcome to "Send" us an e-mail Now!!
Reply will be given within 24 hours
