1. Product description
Part Number: LAS2Y-□Z/△/▲/◎
Panel cutout size: Φ12mm
Switch Rating: DC110V/0.1A, AC220V/0.5A
Contact: 1NO1NC(11) / 2NO2NC(22)
Lockable
IP40 / IP67(with a seal cover on actuator)
Mechanical life: 100,000 cycles
Electrical life: 50,000 cycles
Contact resistance: ≤ 50mΩ
CE, RoHS approval

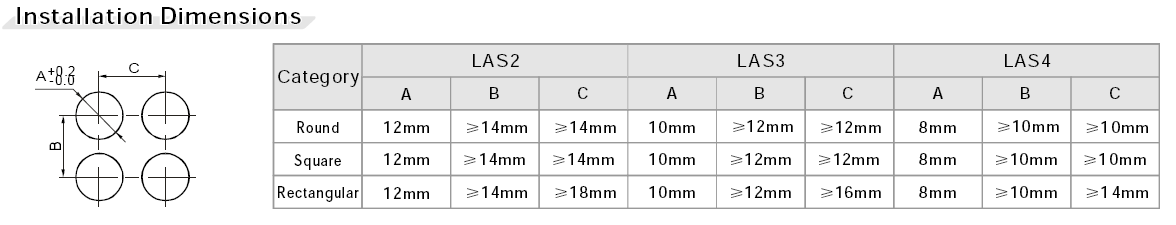

2. Drawing :
3. Lead time: 500pcs/5workdays
Payment: T.T before shipment.
4.About ONPOW:
We are specialized in developing pushbutton switch for 30 years and now have 40 series of pushbutton switch and signal lamps. And we keep on developing new series each year by a team of 20 professional technicians.
5.Picture about factory:
Our Services
1. Quality guaranteed:
Special supervision team to control quality.
All the products will be inspected carefully before delivery.
2. Quality and finish time guaranteed, deliver the goods accredit to negotiation or within 7 days after we get your payment.
Hot Tags: lockable push button, China, manufacturers, wholesale, customized, quotation
