1. Product description
Part Number:HB25-□X
Mounting hole: 25mm/30mm diameter
Contact Configuration: 1NO1NC(11)/2NO2NC(22)/3NO3NC(33)/4NO4NC(44)
Operation Position: 2 positions maintain(21)/2 positions return(23)
3 positions maintain(31)/3 positions half return(32)
IP Degree:IP40
Terminal Type: screw terminal
Switching Rating: Ith:10A, Ui:380V
Approval: CE and ROHS.
Mechanical life:500,000
Electrical life: 50,000
Operation temperature: -25 -- 55 degree.

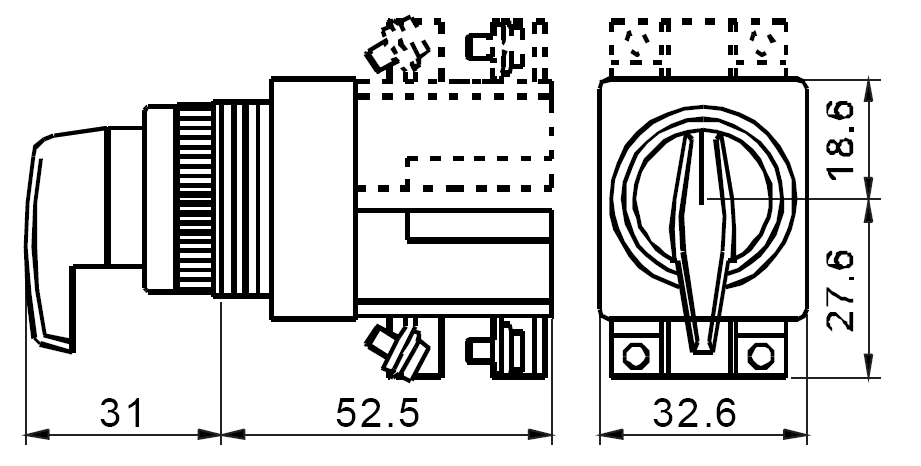

2. Drawing :
3. Quality warranty: 1 year
Lead time: 2000pcs/15workdays
Payment: Paypal or T.T before shipment.
Shipping way:up to you
4.About ONPOW:
30 years history major in push button switch and led indicator, the switch have CE,VDE,UL,CCC,ROHS,Reach approval
5.Picture about factory:
FAQ
1: How do i get samples?
Ask me via E-mail , we will arrange samples for you immediately , you will get the samples in 3 days via international express ,as DHL,FEDEX,UPS,EMS, TNT to door service , which is all up to you . If you order one or two pcs samples , we will offer to you for free charge ,but you should pay the freight which is discount price from international express.
2:How to ship samples out to me?
Generally,the order is not very heavy . so we will choose fast way to sent sample out , even same orders , Like DHL , FEDEX ,EMS, TNT,UPS and so on.It's all up to your choice .You will get samples (same orders ) in 3-5days by international express to door service .
