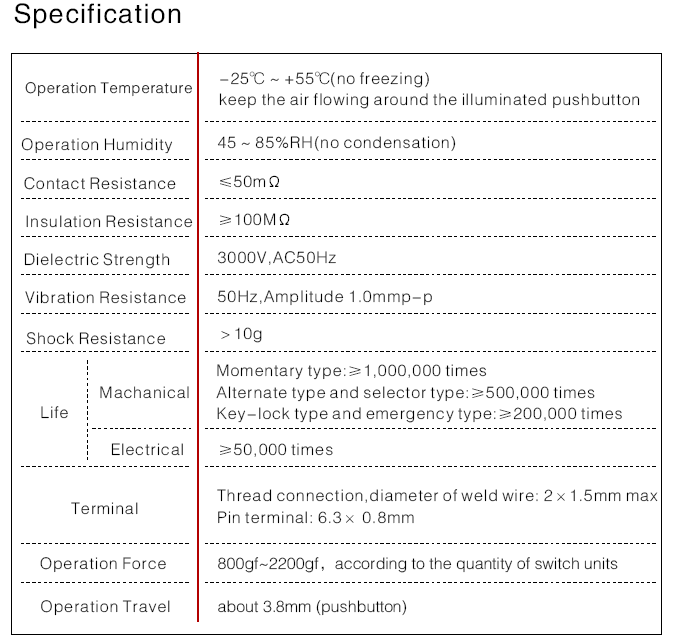

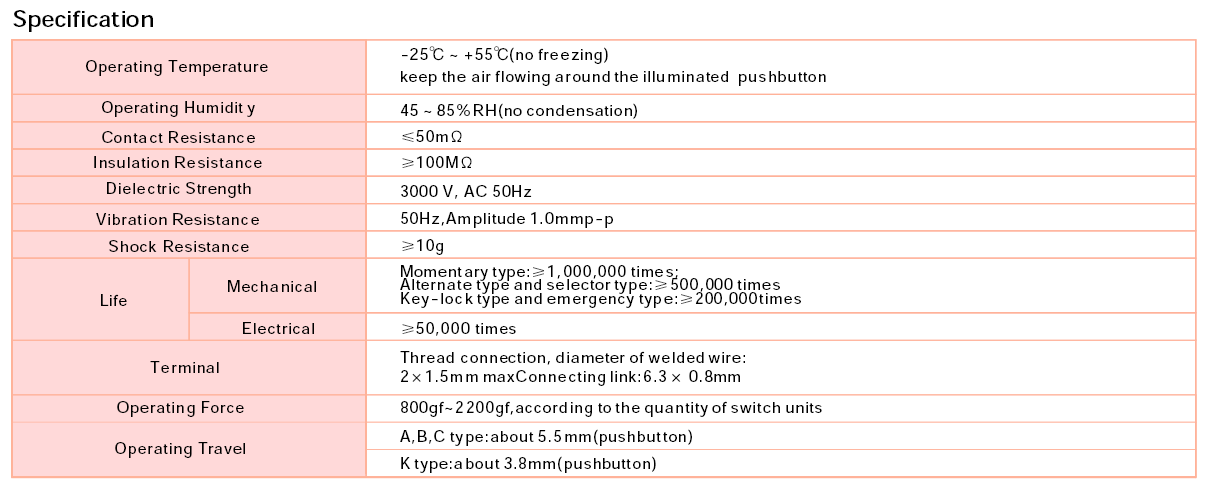

1. Product description
Mounting hole: 30mm diameter
Contact Configuration: 1NO1NC(11)/2NO2NC(22)/3NO3NC(33)/4NO4NC(44)
Operation Position: 2 positions maintain(21)/2 positions return(23) / 3 positions maintain(31)
IP Degree:IP40(IP65 can be made to order for maintain type)
Terminal Type: screw terminal

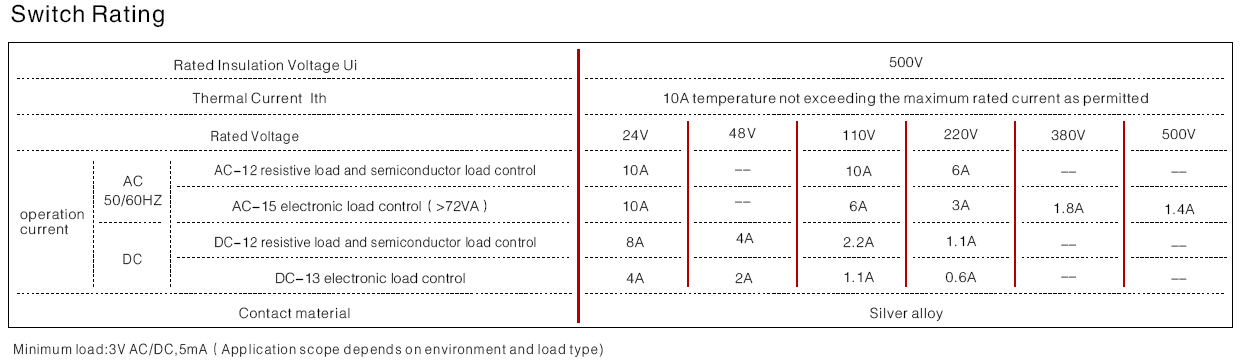

Switching Rating: Ith:10A, Ui:500V
Approval: VDE and ROHS.
Mechanical life:500,000
Electrical life: 50,000
Operation temperature: -25 -- 55 degree.

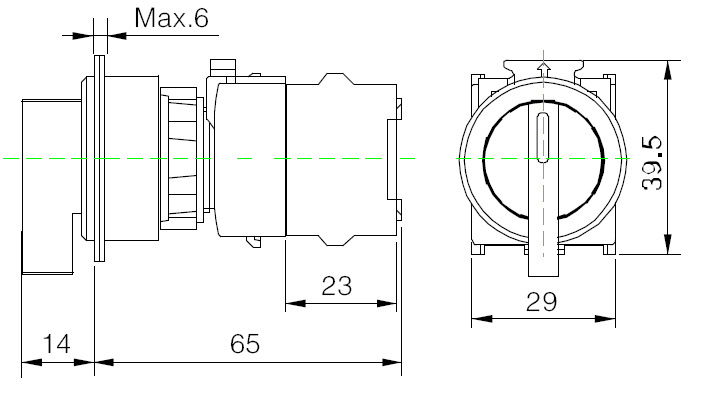

2. Drawing :
3. Quality warranty: 1 year
Lead time: 2000pcs/15workdays
Payment: Paypal or T.T before shipment.
Shipping way:up to you
4.About ONPOW:
Established in 1988 with registered capital of USD1,200,000,we are professional manufacturer of all kinds of pushbutton switches,and indicators.
5.Picture about factory:

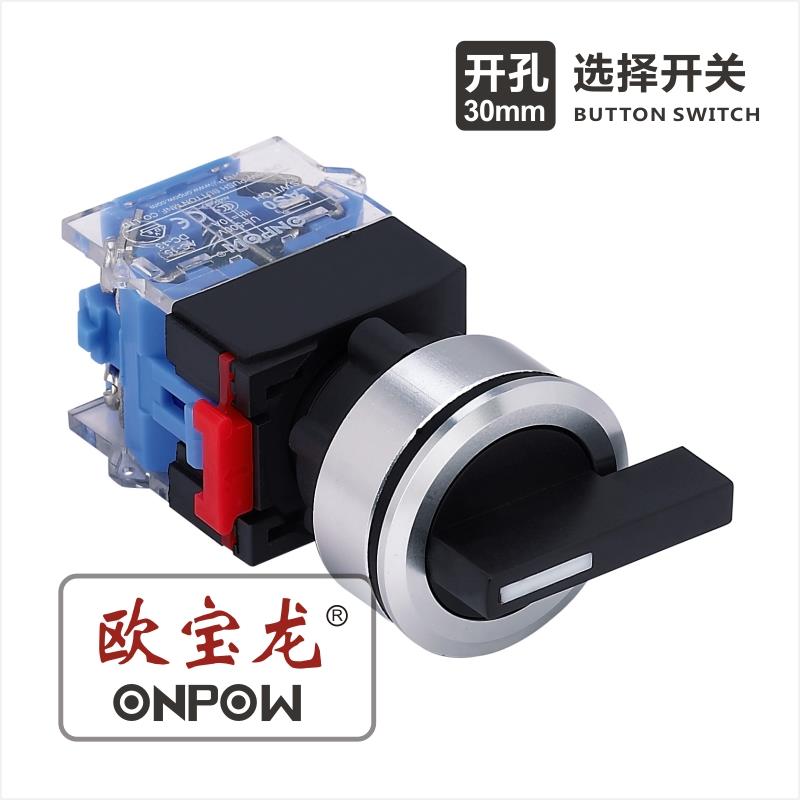

LAS0 Series K30 Type Push Button Switch
Product specialty
※Oversized buttons, beautiful and comfortable operation.
※Low flat head, button switch head under 3mm.
※Inside symbol type of the head, which can engraved symbol and decided direction.
※The metal head of the push button and emergency switch,it's beautiful and upper grade.
※The installation is efficient and convenient, the structure is firm and reliable.
※Wide varieties and varias types to choose.
Applied Range
※Rail transportation industry
※Machine tool industry
※Engineering machinetry
※Ship industry
※Oil industry
※Power transmission and distribution
