1. Product description

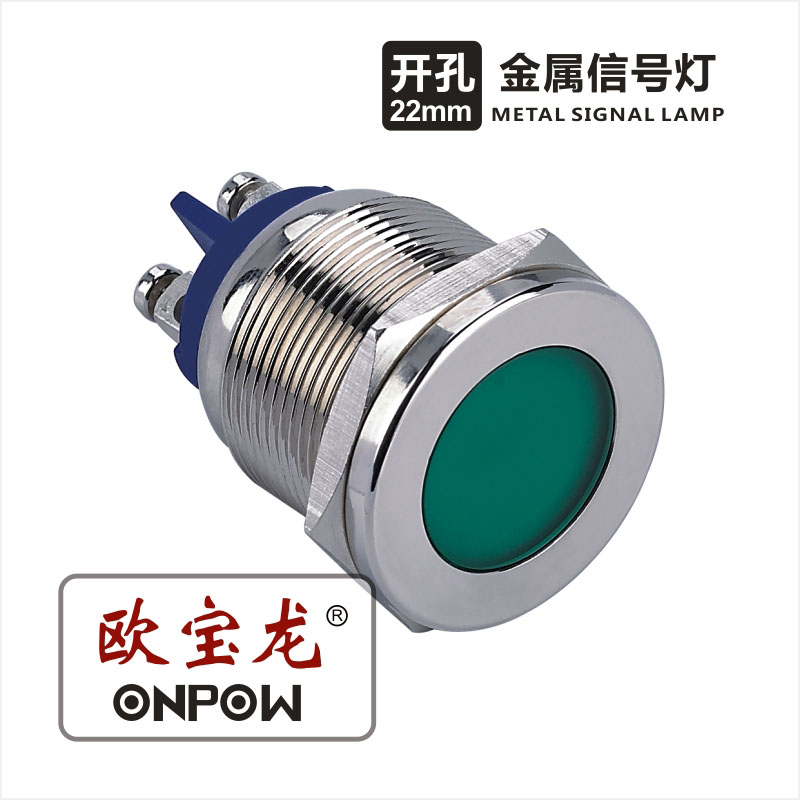

Part Number: GQ22T-D/N-L
Mounting hole: 22mm diameter
Panel Thickness: 1～10mm
LED color; Red, Yellow, Green, Orange,Blue and White
Housing material: nickel plated brass
Water proof level: IP67, IK10
Terminal: screw terminal
Switching Rating: Ith:5A, Ui:250V
Approval: CE and ROHS.
Operation temperature: -25 -- 55 degree.

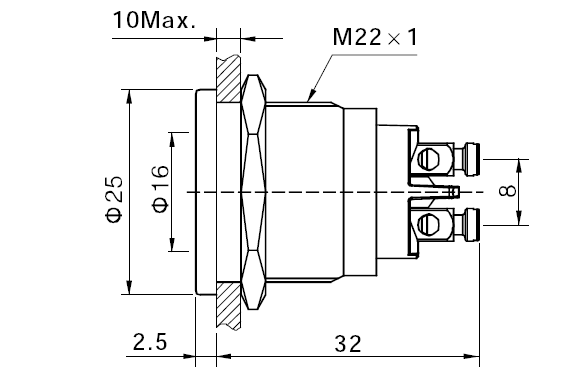

2. Drawing :
3.Picture about factory:
FAQ:
Q. Where is ONPOW PUSH BUTTON MANUFACTURE?
A: We are located at Sibanqiao Industrial zone, Liushi, Wenzhou, zhejiang, China.
Q: I need your price list of all your products, do you have a price list ?
A: Sorry we do not have a price list with our all products as we have hunderds of different products with about thousands different price; if you want know price, pls contact with us, we will provide best price for you.
Q: What meterial can you do ?
A:brass plated nickel and stainless steel ,aluminum.
