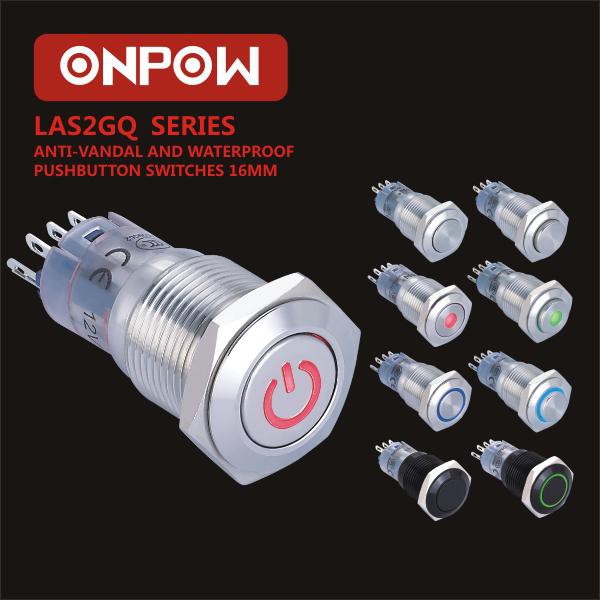

LAS2GQ
16mm Anti Vandal Push Button
1. Brief introduction of the switch :
The LAS2GQ 16mm Anti Vandal Push Button can choose different Contact Structure, 1NO1NC or 2NO2NC. And this series have many different function like momentary type, latching type, with led and without led. It also have switch with Power Symbol.
2. Product description
Mounting hole: 16mm
Function: momentary and latching
Led color:Red,green,yellow,orange,white,blue
Led voltage: 6V, 12V, 24V, 110V, 220V (Other voltage can be made to order)
Button and crust material: Stainless steel/ Nickel plated brass / Aluminium Alloy Black anodized
Pin terminal dimension: 1.8*0.4mm
Rating: 3A/250V 0.5A/220VAC
Approval: CE,ROHS,REACH compliant.
Drawing:
3. How to connect:
C is common used, NO is normal opened, NC is normal closed; +,- are lamp terminals, the standard LED have no difference of anode and cathode; the lamp and switch are relatively independent and can use switch or peripheral circuit to control the led lamp.
4. Price and shipping way:
Under 100 piece : Price during: USD2.06 – USD4.57
Over 100 piece: 5% discount
Over 1000 piece: 10% discount
The price based on FOB shanghai or NINGBO
Lead time: 500pcs/7workdays
Payment: T.T before shipment.
Shipping way: We can calculate different shipping charge for you, like air forwarder, sea forwarder, DHL,UPS,FEDEX,TNT etc.
5.How to choose our switch:
1) What mounting diameter you like (10/12/16/19/22/25/28/30/40mm)?
2) Momentary or ON-OFF latching(self-locking) function?
3) With LED or not?
3.1)What is LED color (red,green,blue,yellow,orange,white or others)?
3.2)What is LED voltage(0V, 3V,5V, 6V,12V,24V,110V, 220V or others)?
ABOUT SWITCH FUNCTION
Common description for switch:
(1) Momentary function:
When you push switch and then move your finger, the actuator will back to the original position.
(2)Latching function:
When you press the button, it will be ON and keeps locked until you press again, it will return to original position.
6. Quality commitment:
The time of warranty : 1 year
(we accept replace the switch if you have any problem during this period)
7. Company introduction:
Please contact us for more information
