LAS1GQ
19mm Anti Vandal Push Button
1. Brief introduction of the switch :
The LAS1GQ 19mm Anti Vandal Push Button is one of our most popular series. It is 1NO1NC and have many different function like momentary type, latching type, with led and without led.
2. Product description
Mounting hole: 19mm
Function: momentary and latching
Led color:Red,green,yellow,orange,white,blue
Led voltage: 6V, 12V, 24V, 110V, 220V (Other voltage can be made to order)
Button and crust material: Stainless steel / Aluminium Alloy Black anodized
Pin terminal dimension: 2.8*0.5mm
Rating: 5A/250V
Approval: CE,ROHS,REACH compliant.

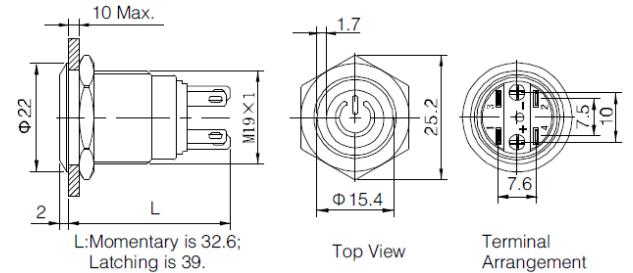

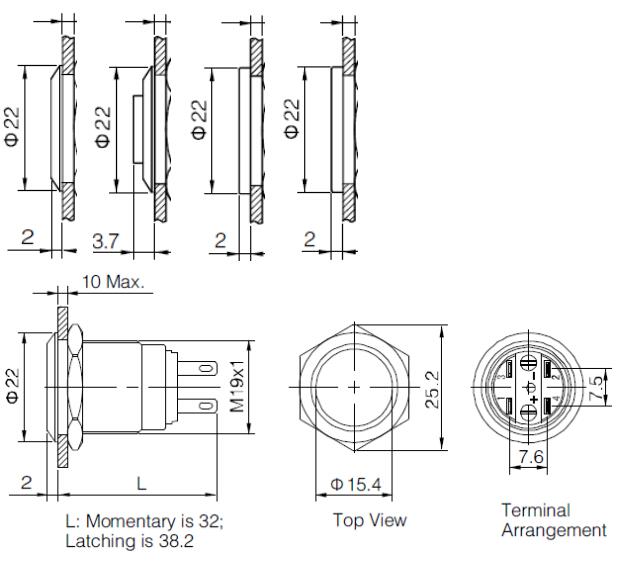

Drawing:
3. How to connect:
3,4 is normal opened, 1,2 is normal closed; +,- are lamp terminals, the standard LED have no difference of anode and cathode; the lamp and switch are relatively independent and can use switch or peripheral circuit to control the led lamp.
4. Price and shipping way:
Under 100 piece : Price during: USD3.48 – USD7.25
The price based on FOB shanghai or NINGBO
Lead time: 500pcs/7workdays
Payment: T.T before shipment.
Shipping way: We can calculate different shipping charge for you, like air forwarder, sea forwarder, DHL,UPS,FEDEX,TNT etc.
5.Why should you choose us?
♦ Founded in 1988 and experienced in the field of pushbutton switches for 27 years.
♦ About 40 series of pushbutton switches and 1-2 new series of production developed each year.
♦ Over 1500 molds available for production
♦ More than 50 patents.
♦ Management system certification:ISO9000
♦ Product Safety Certification:UL,VDE,CE(LVD),CE(EMC),PSE,CCC,ROHS
♦ Sales network expands from over domestic sales to Europe and America
6.Company introduction:
Please contact us for more information
Warranty
Warranty is available based on the following points:
1. Quality guaranteed for one year.
2. If the item you purchase from our company are not of perfected quality, that is they don't work electronically to manufacturers specifications, simply return them to us for replacement or refund.
3. If the items is defective, please notify us within 3 days of delivery.
4. Any items must be returned in their original condition to qualify for a refund or replacemen
