1. Specifications
P/N: GQ22-L-11(Z)D/S
Cut-out: 22mm

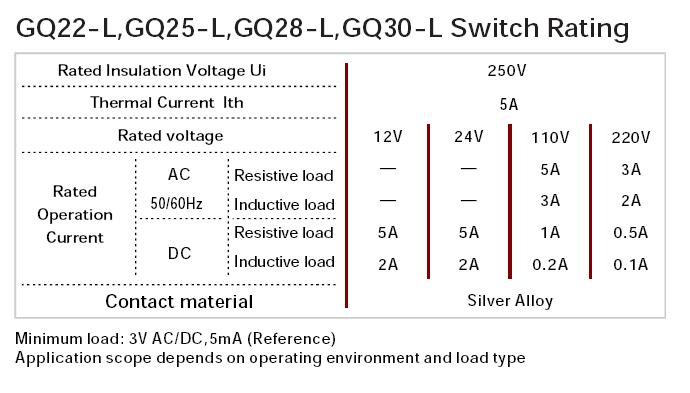

Switch Rating: 5A/250V
Contact: 1NO1NC
Function: Momentary / Latching

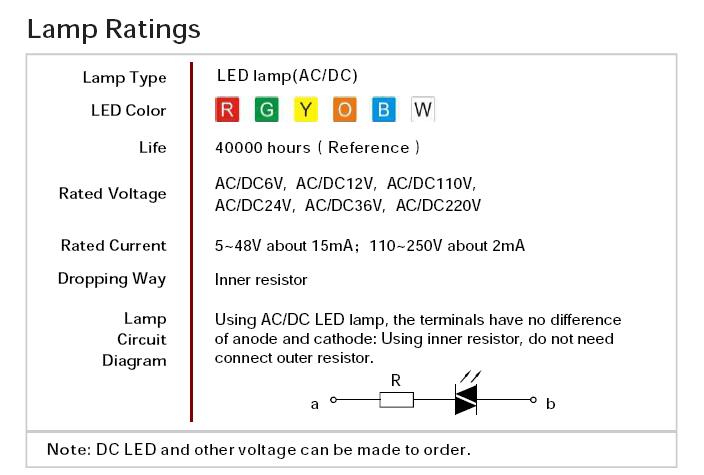

Dot LED
LED Color: Red, Green, Blue, White, Orange, Yellow
LED Voltage: 6V / 12V/ 24V/ 110V/ 220V
Housing: Stainless steel (S)
Base: PA/PC
Travel: About 2.5mm
IP rating: IP65
2. Drawing :
3. Certificate: CE, RoHS.
4.Picture about ONPOW:
ABOUT SWITCH FUNCTION
Common description for switch:
(1) Momentary function:
When you push switch and then move your finger, the actuator will back to the original position.
(2)Latching function:
When you press the button, it will be ON and keeps locked until you press again, it will return to original position.
