1. Specifications
Part number: LAS2GQPH-ZD/S
Cut-out: 16mm
Actuator: Dot high round
Switch Rating: 3A/250V
Contact: 1NO1NC / 2NO2NC
Function: Latching on-off (Latching, means that when you push switch once it will change state and stay in this pushed-down position and will not come back to original position unless you push it again. )
LED Color: RED / GREEN/ BLUE/ ORANGE / WHITE
LED Voltage: 1.8V-250V
Crust material: Stainless steel (S)
Travel: 2.8mm
IP rating: IP40/IP67

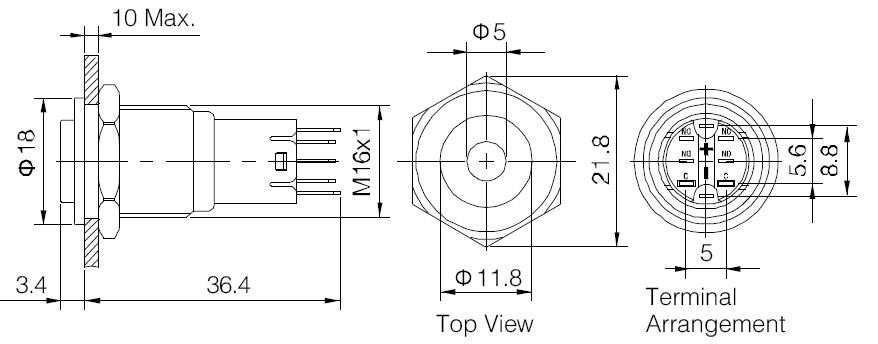

2. Drawing :
3. Certificate: CE, RoHS

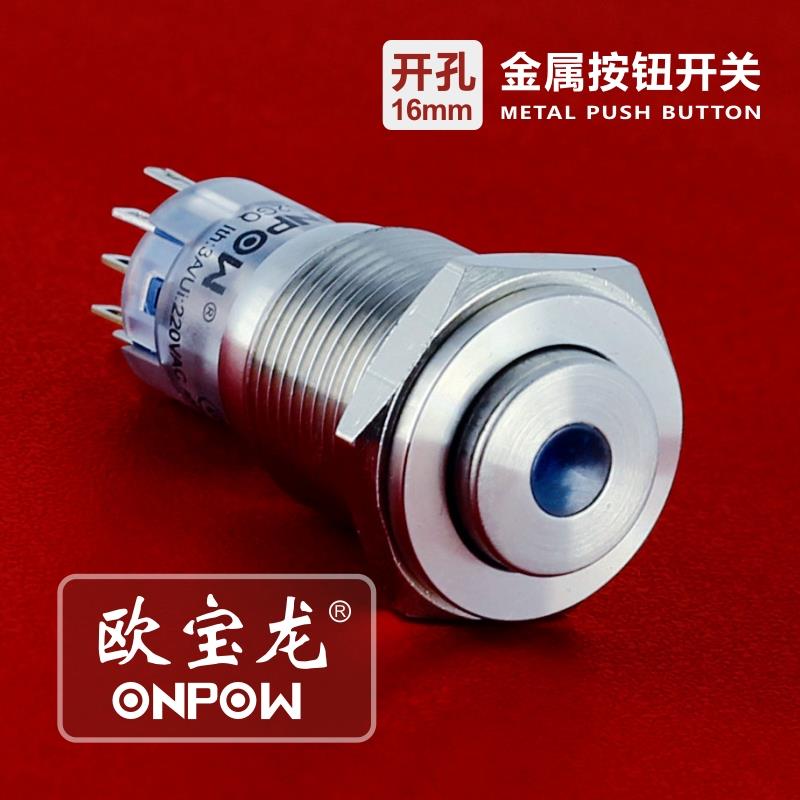

4.Picture about ONPOW:
5. About ONPOW:
We have diversified product specification and various product safety authentication. In addition to thedomestic market of China, our main clients are located in the Europe and America. We have consistentlyadhered to the stable product quality and the meticulous product manufacturing.
